Private Label 421805 Fan Cycling Pressure Switch

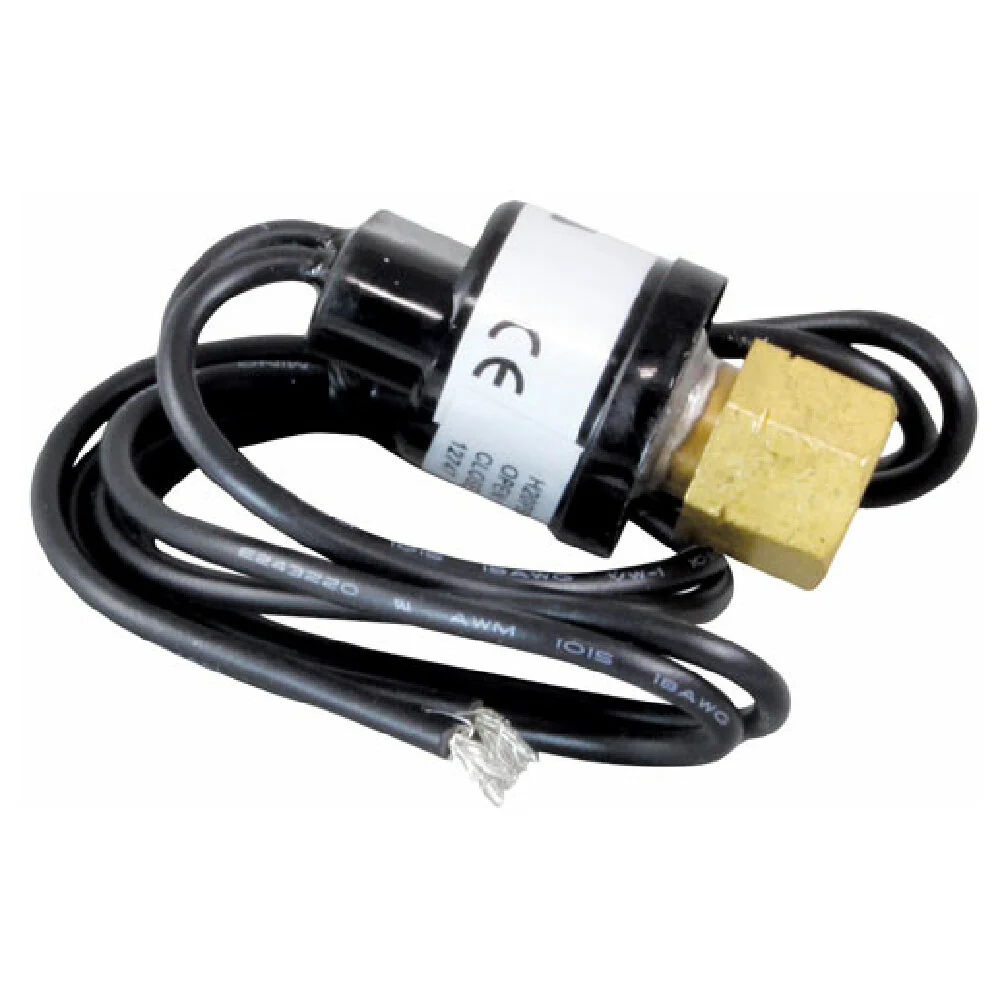

Product image 1

Private Label 421805 Fan Cycling Pressure Switch

Private Label 421805 Automatic Reset High Low & Condenser Fan Cycling Pressure, Switches., Fan Cycling Lo-pres. Open 150 Psi Close 225 Psi /- 15psi, High Pressure Spst Open On Pressure Rise, Low Pressure Spst Open On Pressure Fall, Condenser Fan Cycling Spst Open On Pressure Fall., 1/4" Female Sae Connection, Snap Acting Ss Hermetically Sealed Sensor (shp Slp & Sfc), Small Size And Light Weight For Direct Mounting, Excellent Set Point Repeatability/stability, Pressure Range 0 To 650 Psi Burst Pressure 5000 Psi, Life Rated Load 100 000 Cycles, Rated Voltage 50/60 Hz. 24/120/240 V (6 Rla 36 Lra), Temperatures Ambient 20 F To 176 F (-30 C To 80 C), Fluid 60 F To 250 F (-50 C To 120 C)


$10.60

Original: $30.28

-65%
Private Label 421805 Fan Cycling Pressure Switch

$30.28

$10.60

Product Information

Shipping & Returns

Description

Private Label 421805 Automatic Reset High Low & Condenser Fan Cycling Pressure, Switches., Fan Cycling Lo-pres. Open 150 Psi Close 225 Psi /- 15psi, High Pressure Spst Open On Pressure Rise, Low Pressure Spst Open On Pressure Fall, Condenser Fan Cycling Spst Open On Pressure Fall., 1/4" Female Sae Connection, Snap Acting Ss Hermetically Sealed Sensor (shp Slp & Sfc), Small Size And Light Weight For Direct Mounting, Excellent Set Point Repeatability/stability, Pressure Range 0 To 650 Psi Burst Pressure 5000 Psi, Life Rated Load 100 000 Cycles, Rated Voltage 50/60 Hz. 24/120/240 V (6 Rla 36 Lra), Temperatures Ambient 20 F To 176 F (-30 C To 80 C), Fluid 60 F To 250 F (-50 C To 120 C)
